The image above represents pouring time for thin-walled casting 450kg in mass. To calculate pouring time thin-walled casting 450kg in mass, two essential parameters are Co-efficient used to Account for Wall Thickness (S) and Mass of Casting with Gates and Risers (G).
The formula for calculating pouring time for thin-walled casting 450kg in mass:
t = S√(G)
Where:
t = Pouring Time for Thin-Walled Casting 450kg in Mass
S = Co-efficient used to Account for Wall Thickness
G = Mass of Casting with Gates and Risers
Let’s solve an example;
Find the pouring time for thin-walled casting 450kg in mass when the co-efficient used to account for wall thickness is 20 and the mass of casting with gates and risers is 32.
This implies that;
S = Co-efficient used to Account for Wall Thickness = 20
G = Mass of Casting with Gates and Risers = 32
t = S√(G)
So, t = 20 x √(32)
t = 20 x 5.65
t =Â 113.13
Therefore, the pouring time for thin-walled casting 450kg in mass is 113.13 s.
Calculating the Co-efficient used to Account for Wall Thickness when the Pouring Time for Thin-Walled Casting 450kg in Mass and the Mass of Casting with Gates and Risers are Given
S = t / √(G)
Where;
S = Co-efficient used to Account for Wall Thickness
t = Pouring Time for Thin-Walled Casting 450kg in Mass
G = Mass of Casting with Gates and Risers
Let’s solve an example;
Find the co-efficient used to account for wall thickness when the pouring time for thin-walled casting 450kg in mass is 30 and the mass of casting with gates and risers is 25.
Master Every Calculation Instantly
Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.
This implies that;
t = Pouring Time for Thin-Walled Casting 450kg in Mass = 30
G = Mass of Casting with Gates and Risers = 25
S = t / √(G)
Then, S = 30 / √25
S = 30 / 5
S = 6
Therefore, the co-efficient used to account for wall thickness is 6.
Read more:Â How to Calculate and Solve for Time of Pouring | Design of Gating System
Calculating for Mass of Casting with Gates and Risers when the Pouring time for Thin-Walled Casting 450kg in Mass and the Co-efficient used to Account for Wall Thickness are Given
G = (t / S)2
Where;
G = Mass of Casting with Gates and Risers
t = Pouring Time for Thin-Walled Casting 450kg in Mass
S = Co-efficient used to Account for Wall Thickness
Let’s solve an example;
Find the mass of casting with gates and risers when the pouring time for thin-walled casting 450kg in mass is 24 and the co-efficient used to account for wall thickness is 14.
This implies that;
t = Pouring Time for Thin-Walled Casting 450kg in Mass = 24
S = Co-efficient used to Account for Wall Thickness = 14
G = (t / S)2
So, G = (24 / 14)2
G = (1.714)2
G = 2.93
Therefore, the mass of casting with gates and risers is 2.93.
How to Calculate Pouring Time for thin-Walled Casting 450kg in Mass Using Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the pouring time for thin-walled casting 450kg in mass.
To get the answer and workings of the pouring time for thin-walled casting 450kg in mass using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
To get access to the professional version via web, you need to register and subscribe for NGN 1,500 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials & Metallurgical under Engineering.
Now, Click on Foundry Technology under Material & Metallurgical
Now, Click on Design of Gating System under Foundry Technology

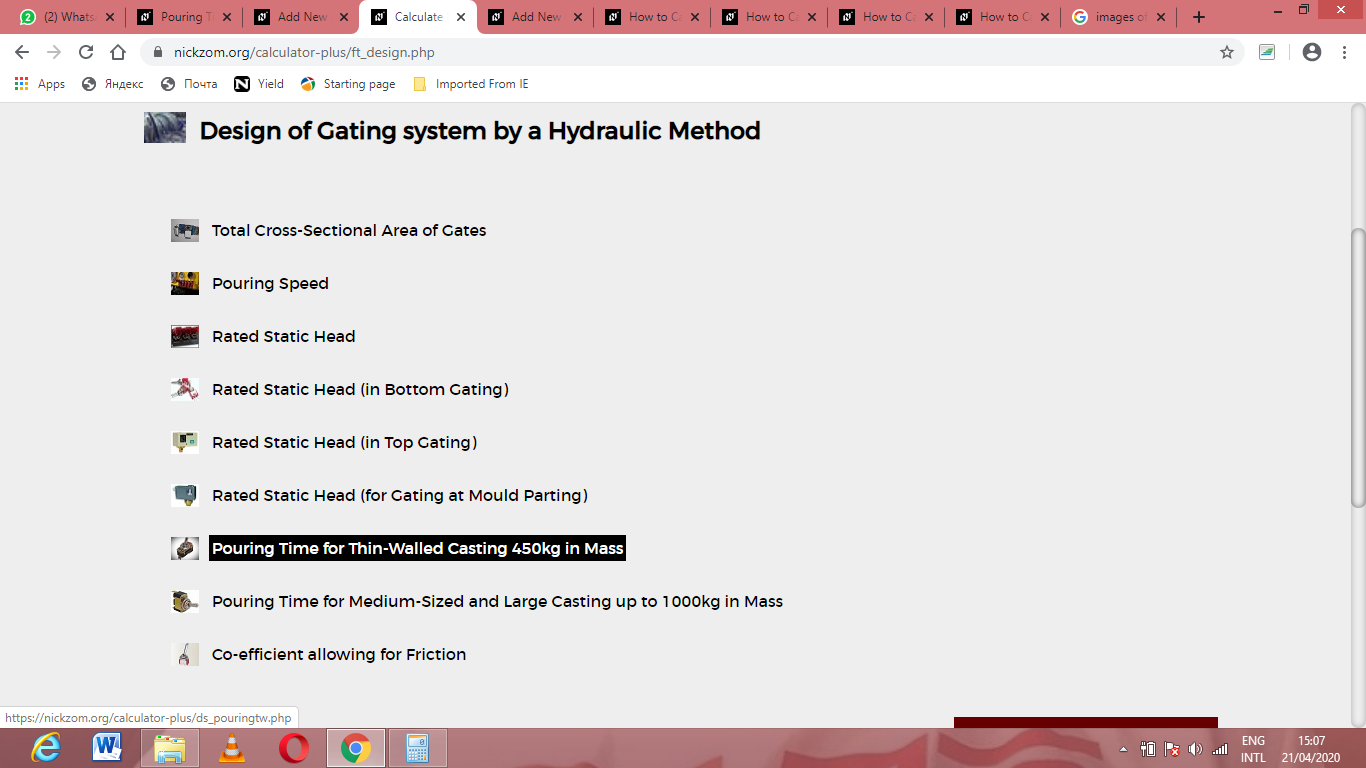

Then, Click on Pouring Time for Thin-Walled Casting 450kg in Mass under Design of Gating System

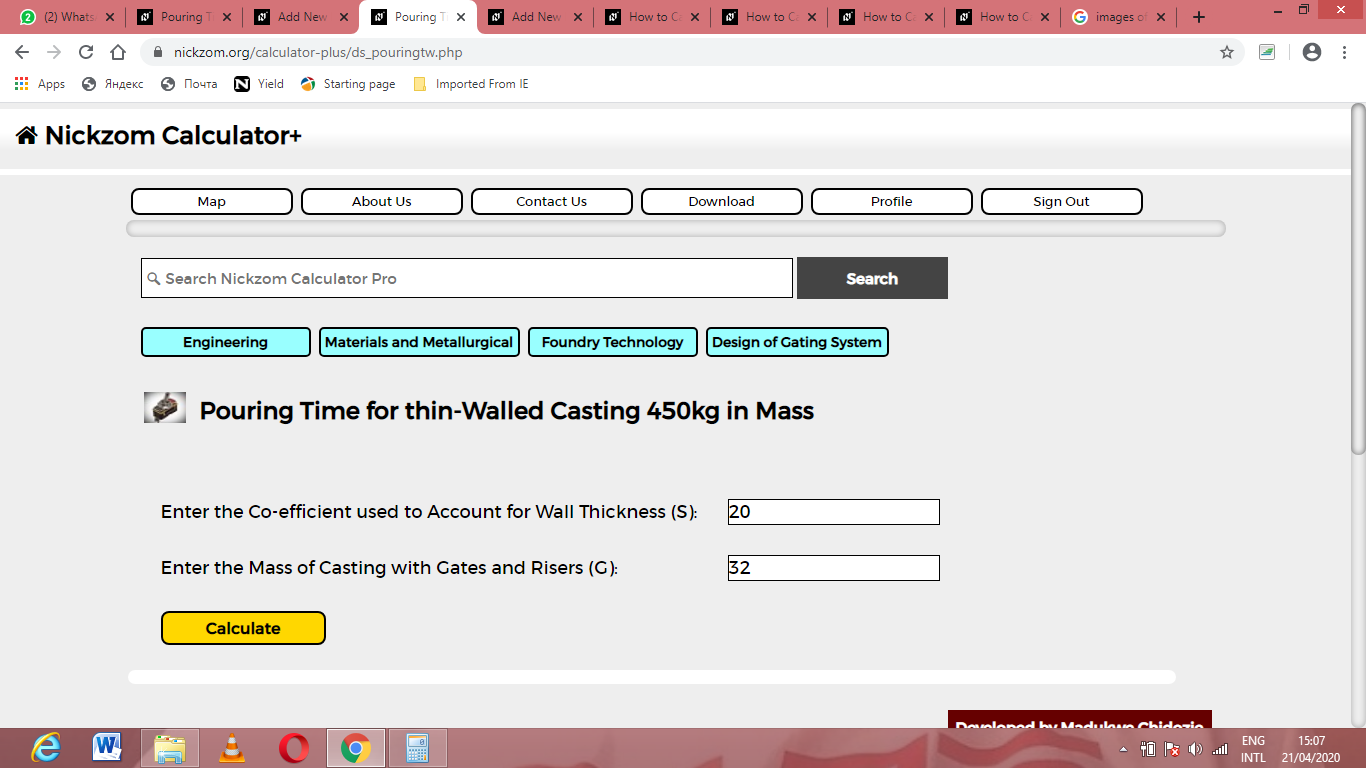

The screenshot below displays the page or activity to enter your values, to get the answer for the pouring time for thin-walled casting 450kg in mass according to the respective parameters which are the Co-efficient used to Account for Wall Thickness (S) and Mass of Casting with Gates and Risers (G).
Now, enter the values appropriately and accordingly for the parameters as required by the Co-efficient used to Account for Wall Thickness (S) is 20 and Mass of Casting with Gates and Risers (G) is 32.
Finally, Click on Calculate

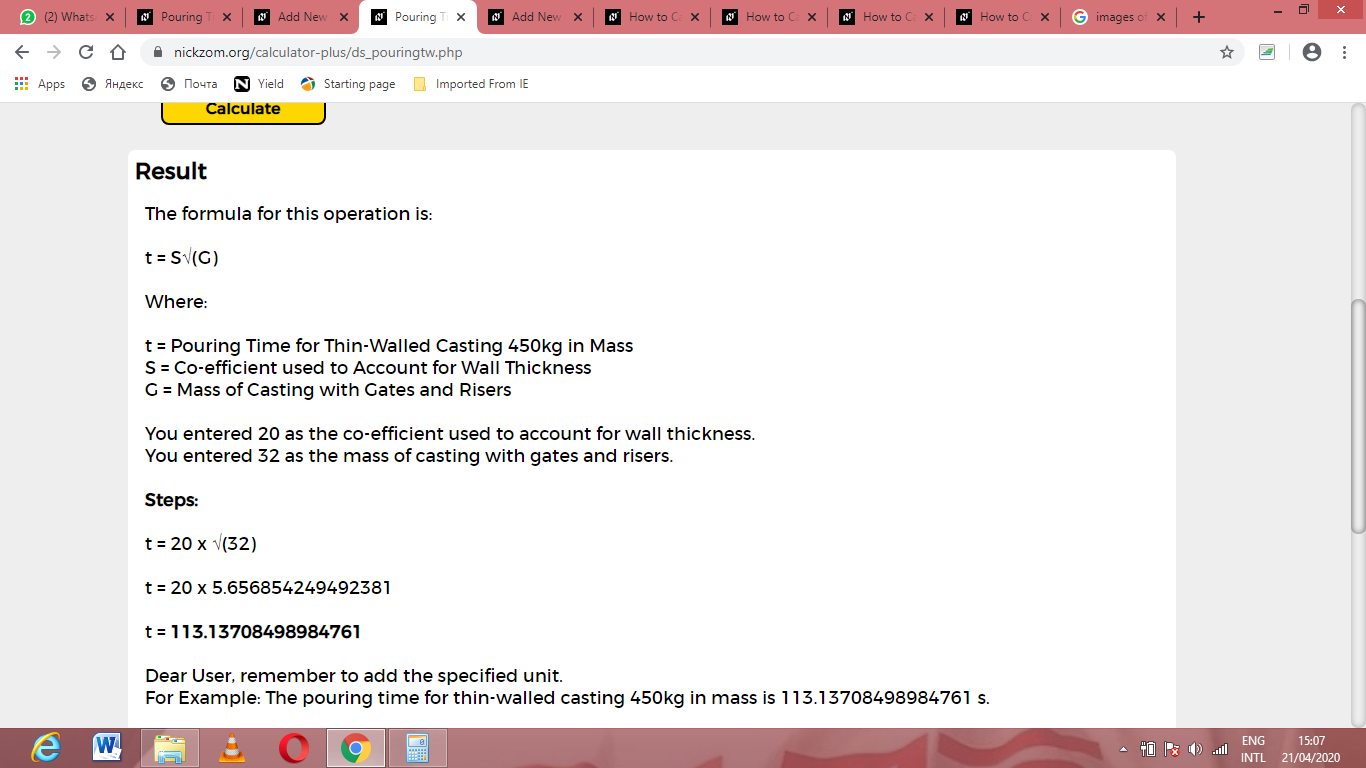

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the pouring time for thin-walled casting 450kg in mass and presents the formula, workings and steps too.
