The image above represents infiltration capacity. To calculate infiltration capacity, six essential parameters are needed and these parameters are Final constant infiltration capacity (Fc), Co-efficient (A), Co-efficient (p), Storage potential (s), Total volume of water that infiltrates (f) and Total porosity of soil lying over the impeding stratum (Tp).
The formula for calculating infiltration capacity:
F = Fc + A(s – f)p / Tp
Where:
F = Infiltration Capacity
Fc = Final Constant Infiltration Capacity
A = Co-efficient
s = Co-efficient
f = Storage Potential
p = Total Volume of Water that Infiltrates
Tp = Total Porosity of Soil Lying over the Impeding Stratum
Let’s solve an example;
Find the infiltration capacity when the final constant infiltration capacity is 24, the co-efficient is 12, the co-efficient is 9, the storage potential is 7, the total volume of water that infiltrates is 4 and the total porosity of soil lying over the impeding stratum is 6.
This implies that;
Fc = Final Constant Infiltration Capacity = 24
A = Co-efficient = 12
s = Co-efficient = 9
f = Storage Potential = 7
p = Total Volume of Water that Infiltrates = 4
Tp = Total Porosity of Soil Lying over the Impeding Stratum = 6
F = Fc + A(s – f)p / Tp
F = 24 +Â 12(9 – 7)4Â /Â 6
That is, F = 24 + 12(2)4Â /Â 6
F = 24 +Â 12(16)Â /Â 6
F = 24 +Â 192Â /Â 6
So, F = 24 + 32
F = 56
Therefore, the infiltration capacity is 56.
Read more:Â How to Calculate and Solve for Infiltration Rate | Methods of Application of Water
How to Calculate Infiltration Capacity With Huggin’s Model in Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the infiltration capacity.
To get the answer and workings of the infiltration capacity using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
Master Every Calculation Instantly
Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.
To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Agricultural under Engineering.

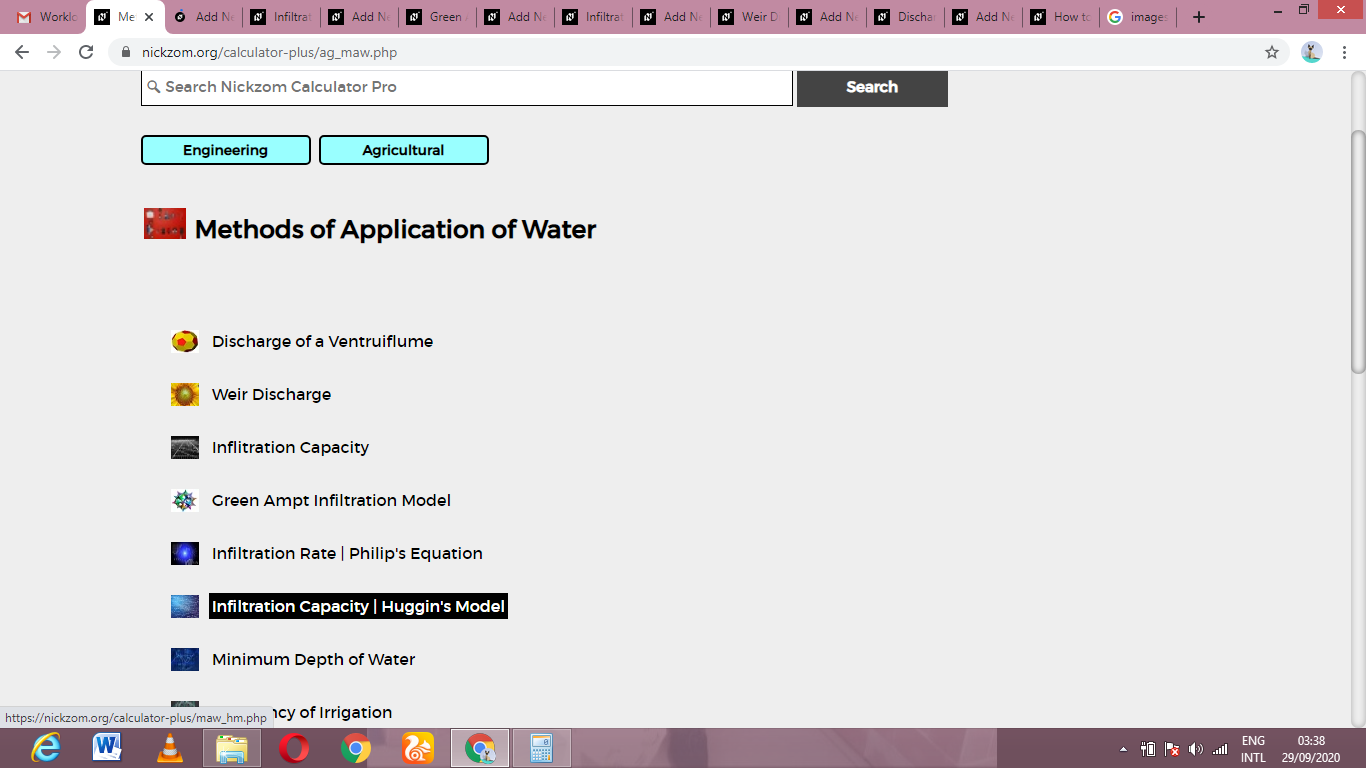

Now, Click on Methods of Application of Water under Agricultural

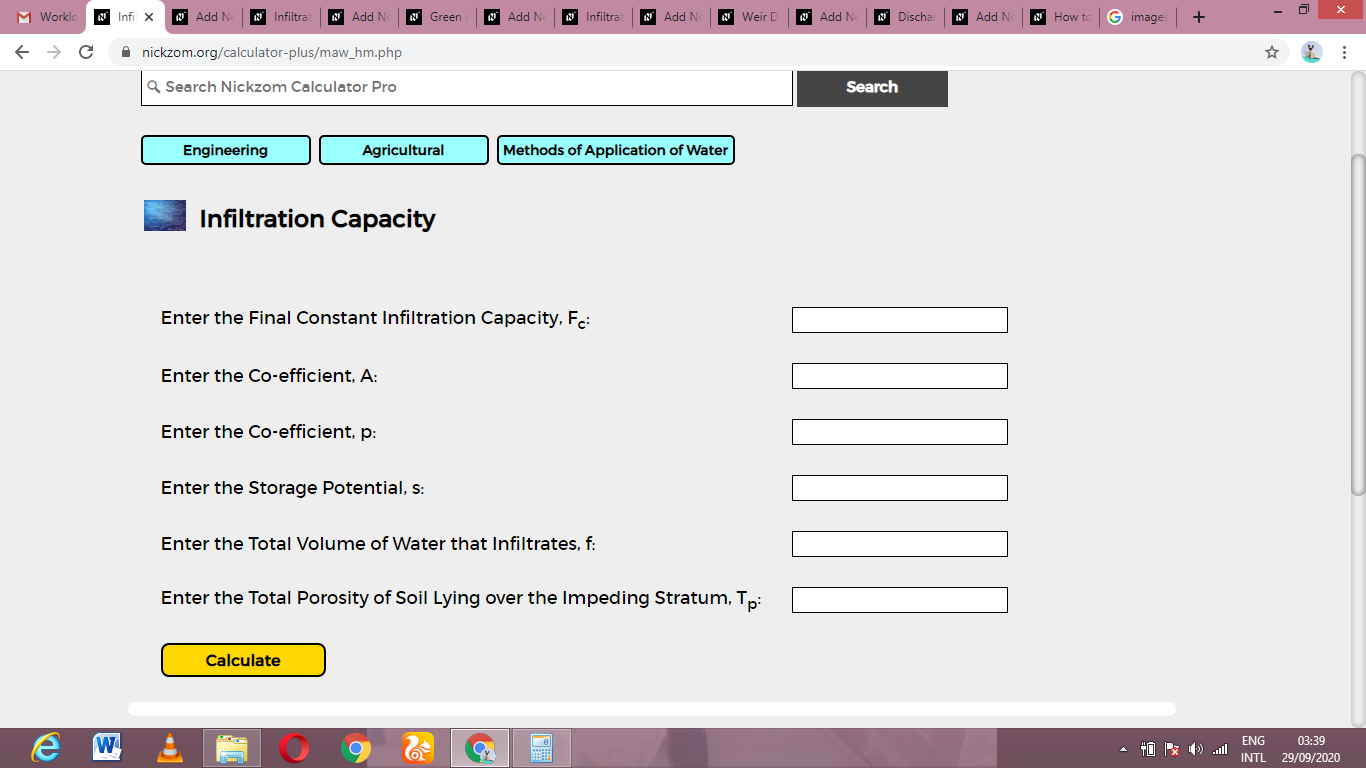

Now, Click on Infiltration Capacity | Huggin’s Model under Methods of Application of Water

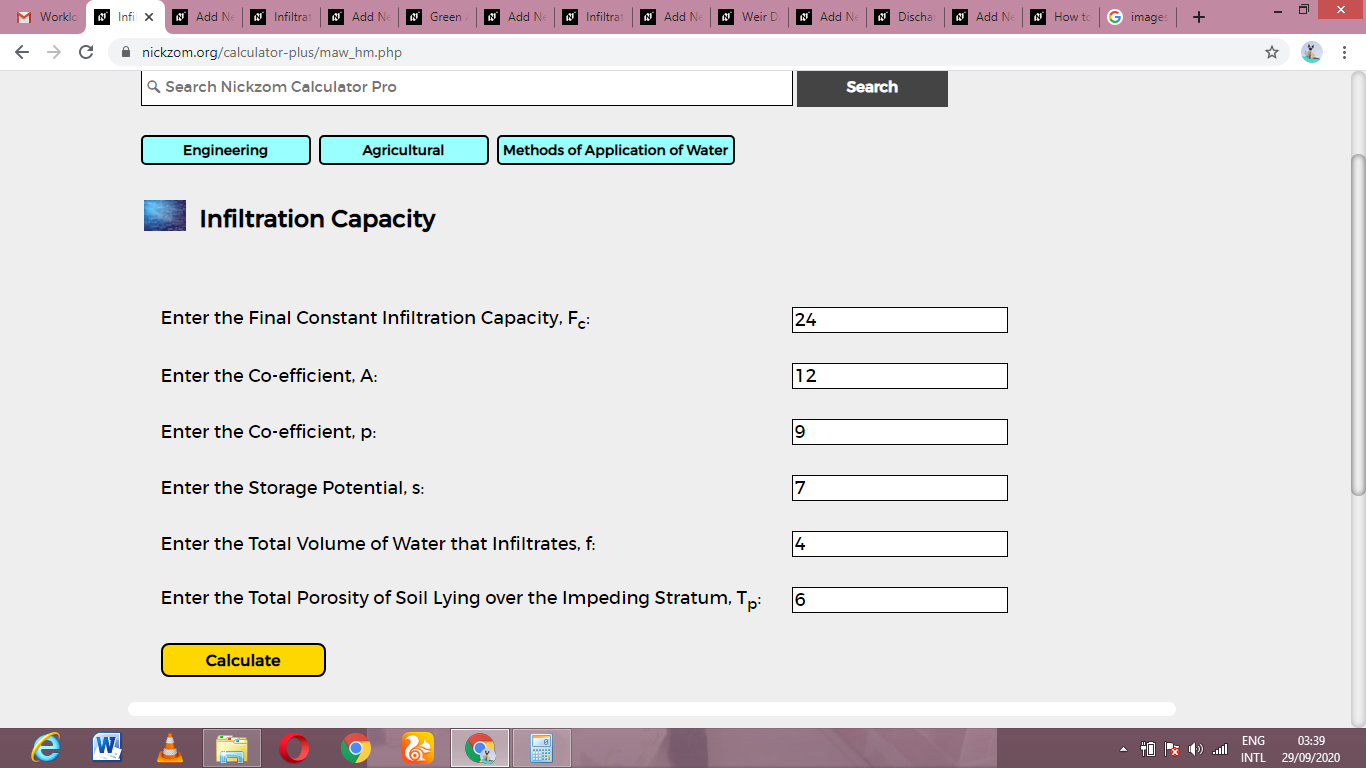

The screenshot below displays the page or activity to enter your values, to get the answer for the infiltration capacity according to the respective parameters which is the Final constant infiltration capacity (Fc), Co-efficient (A), Co-efficient (p), Storage potential (s), Total volume of water that infiltrates (f) and Total porosity of soil lying over the impeding stratum (Tp).
Now, enter the values appropriately and accordingly for the parameters as required by the Final constant infiltration capacity (Fc) is 24, Co-efficient (A) is 12, Co-efficient (p) is 9, Storage potential (s) is 7, Total volume of water that infiltrates (f) is 4 and Total porosity of soil lying over the impeding stratum (Tp) is 6.
Finally, Click on Calculate

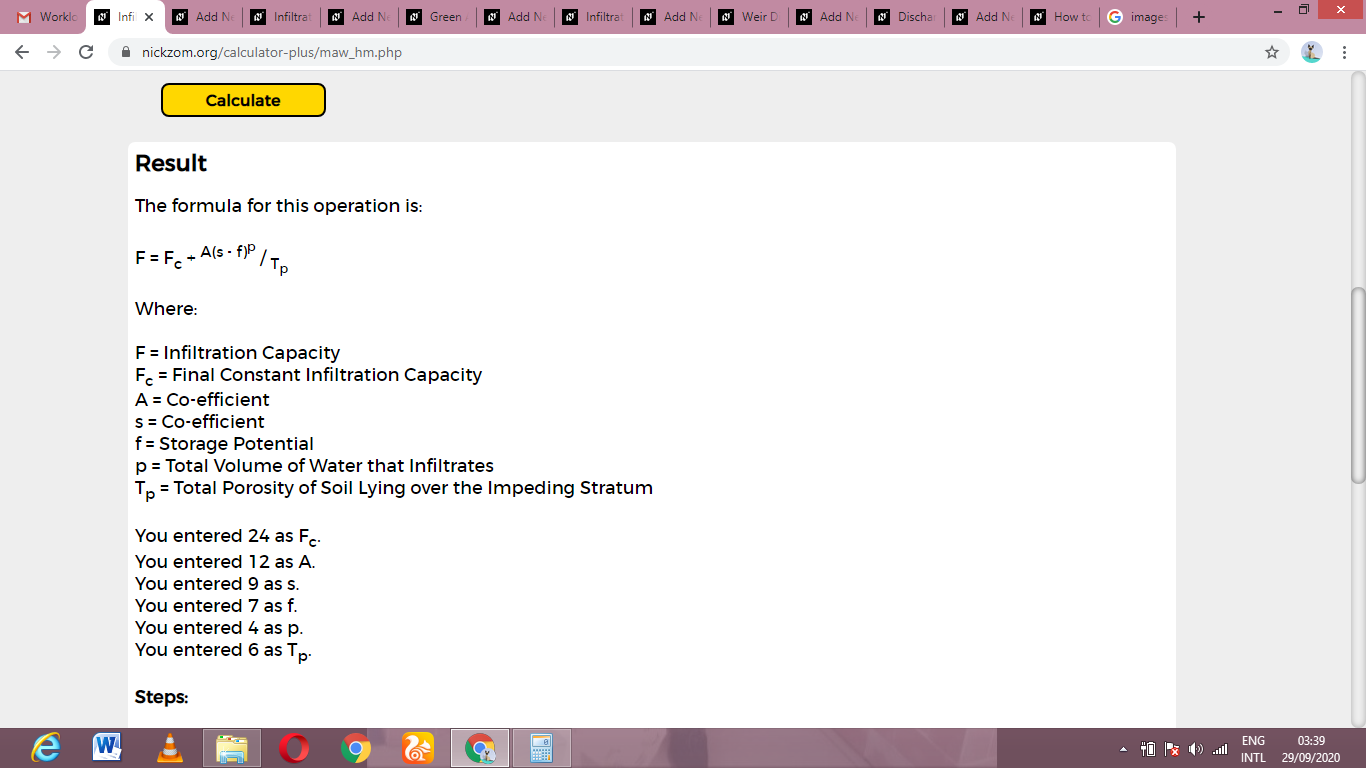

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the infiltration capacity and presents the formula, workings and steps too.
