This image above represents cutting ratio. To calculate cutting ratio, two essential parameters are needed and these parameters are Uncut Chip Thickness (t)Â and Chip Thickness after Cut (tc).
The formula for calculating cutting ratio:
r = t / tc
Where:
r = Cutting Ratio
t = Uncut Chip Thickness
tc = Chip Thickness after Cut
Let’s solve an example;
Find the cutting ratio when the uncut chip thickness is 20 and the chip thickness after cut is 2.
This implies that;
t = Uncut Chip Thickness = 20
tc = Chip Thickness after Cut = 2
That is, r = t / tc
r =Â 20Â /Â 2
r = 10
Therefore, the cutting ratio is 10.
Calculating for Uncut Chip Thickness when the Cutting Ratio and the Chip Thickness after Cut is Given
t = r x tc
Where;
t = Uncut Chip Thickness
r = Cutting Ratio
tc = Chip Thickness
Let’s solve an example;
Find the Uncut chip thickness when the cutting ratio is 10 and the chip thickness is 5
This implies that;
Master Every Calculation Instantly
Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.
r = Cutting Ratio = 10
tc = Chip Thickness = 5
t = r x tc
So, t = 10 x 5
t = 50
Therefore, the uncut chip thickness is 50.
Read more:Â How to Calculate and Solve for Cutting Ratio I Mechanics of Chips Formation
Calculating for Chip Thickness when the Cutting Ratio and Uncut Chip Thickness are Given
tc = t / r
Where;
tc = Chip Thickness
r = Cutting Ratio
t = Uncut Chip Thickness
Let’s solve an example;
Find the chip thickness when the cutting ratio is 20 and the uncut chip thickness is 40.
This implies that;
r = Cutting Ratio = 20
t = Uncut Chip Thickness = 40
tc = t / r
So, tc = 40 / 20
tc = 2
Therefore, the chip thickness is 2.
Read more:Â How to Calculate and Solve for Chip Reduction Factor | Mechanics of Chip Formation
How to Calculate Cutting Ratio / Mechanics of Chips Formation Using Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the cutting ratio.
To get the answer and workings of the cutting ratio using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.
So, Click on Metal Forming Processes under Materials and Metallurgical
Now, Click on Mechanics of Chips Formation under Metal Forming Processes

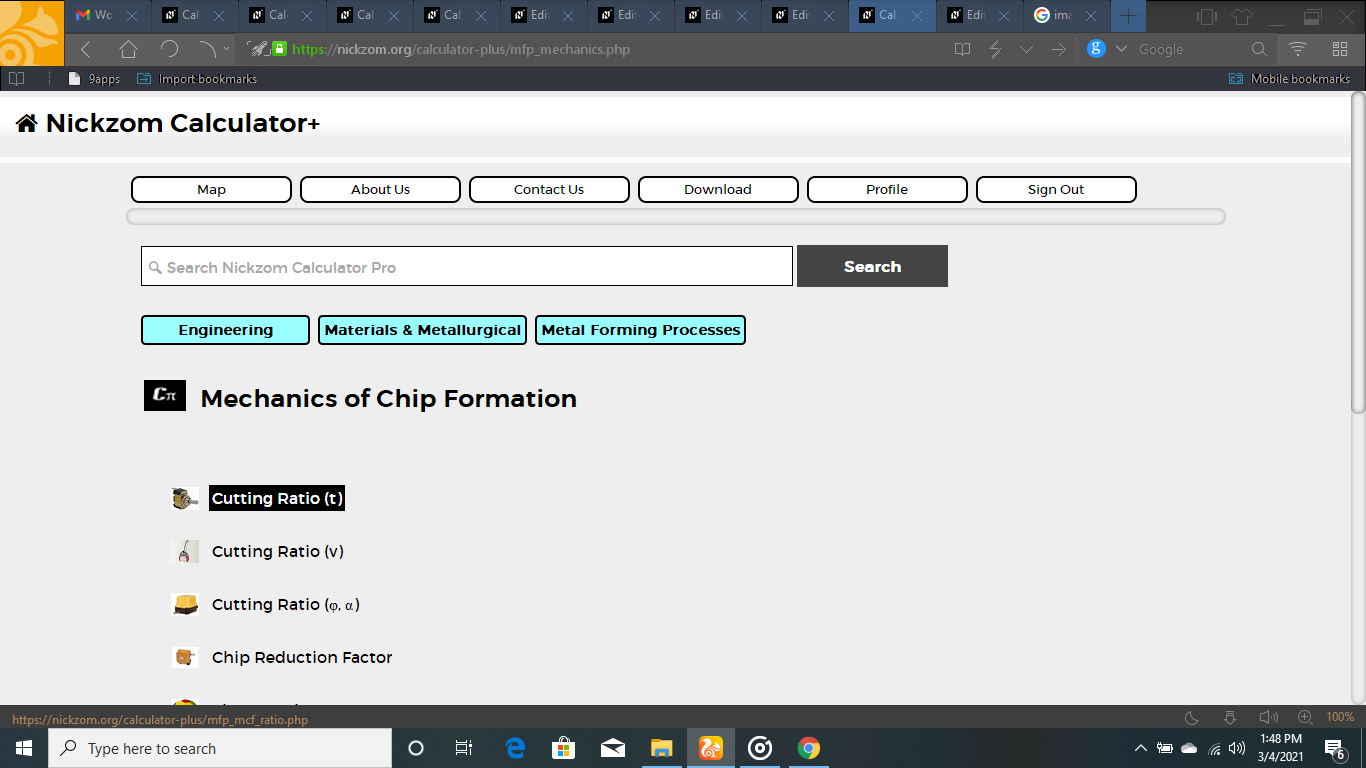

Now, Click on Cutting Ratio under Mechanics of Chips Formation

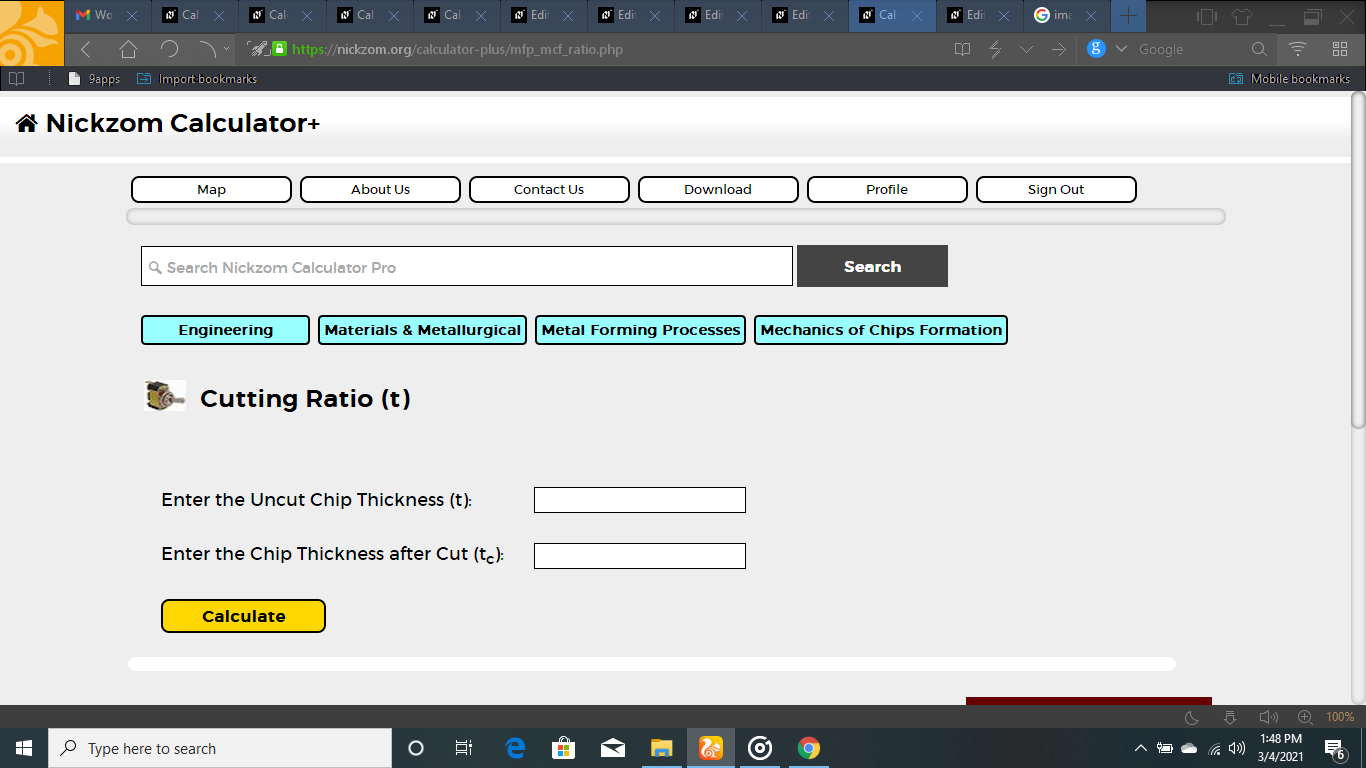

The screenshot below displays the page or activity to enter your values, to get the answer for the cutting ratio according to the respective parameters which is the Uncut Chip Thickness (t)Â and Chip Thickness after Cut (tc).
Now, enter the values appropriately and accordingly for the parameters as required by the Uncut Chip Thickness (t) is 20 and Chip Thickness after Cut (tc) is 2.
Finally, Click on Calculate

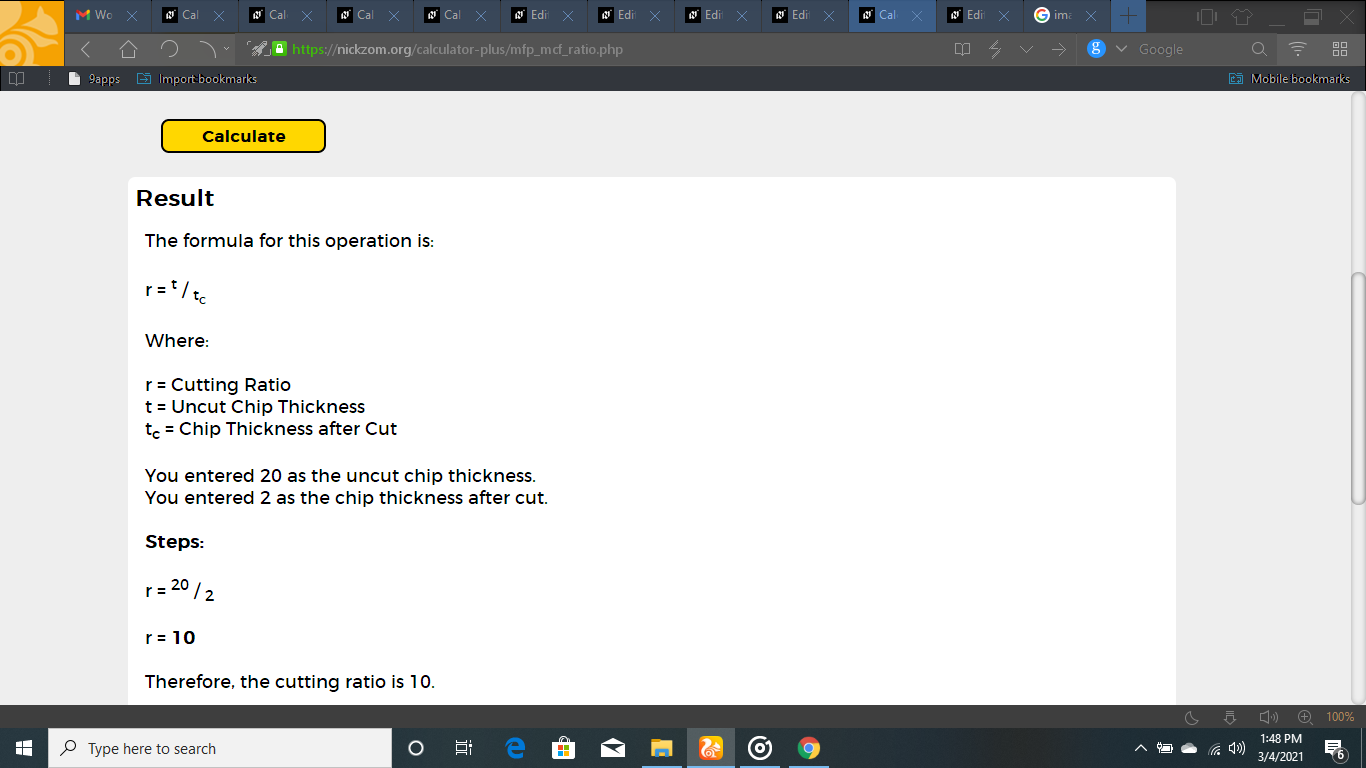

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the cutting ratio and presents the formula, workings and steps too.
