How to Calculate and Solve for Shear Angle | Merchant Force Circle

The image above represents shear angle. To calculate shear angle, two essential parameters are needed and these parameters are Rake Angle (in Degrees) (α) and Angle of Friction (in Degrees) (β).

The formula for calculating shear angle:

φ = 45° + ^α / ₂ – ^β / ₂

Where:

φ = Shear Angle (φ)
α = Rake Angle
β = Angle of Friction

Let’s solve an example;
Find the shear angle when the rake angle is 34 and the angle of friction is 28.

This implies that;

α = Rake Angle = 34
β = Angle of Friction = 28

φ = 45° + ^α / ₂ – ^β / ₂
That is, φ = 45° + ^34° / ₂ – ^28° / ₂
φ = 45° + 17° – 14°
φ = 48°

Therefore, the shear angle is 48°.

Read more: How to Calculate and Solve for Shear Angle | Merchant Force Circle

How to Calculate Shear Angle With Nickzom Calculator

Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the shear angle.

To get the answer and workings of the shear angle using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.

You can get this app via any of these means:

Web – https://www.nickzom.org/calculator-plus

To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator

Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

Now, Click on Metal Forming Processes under Materials and Metallurgical

Now, Click on Merchant Force Circle under Metal Forming Processes

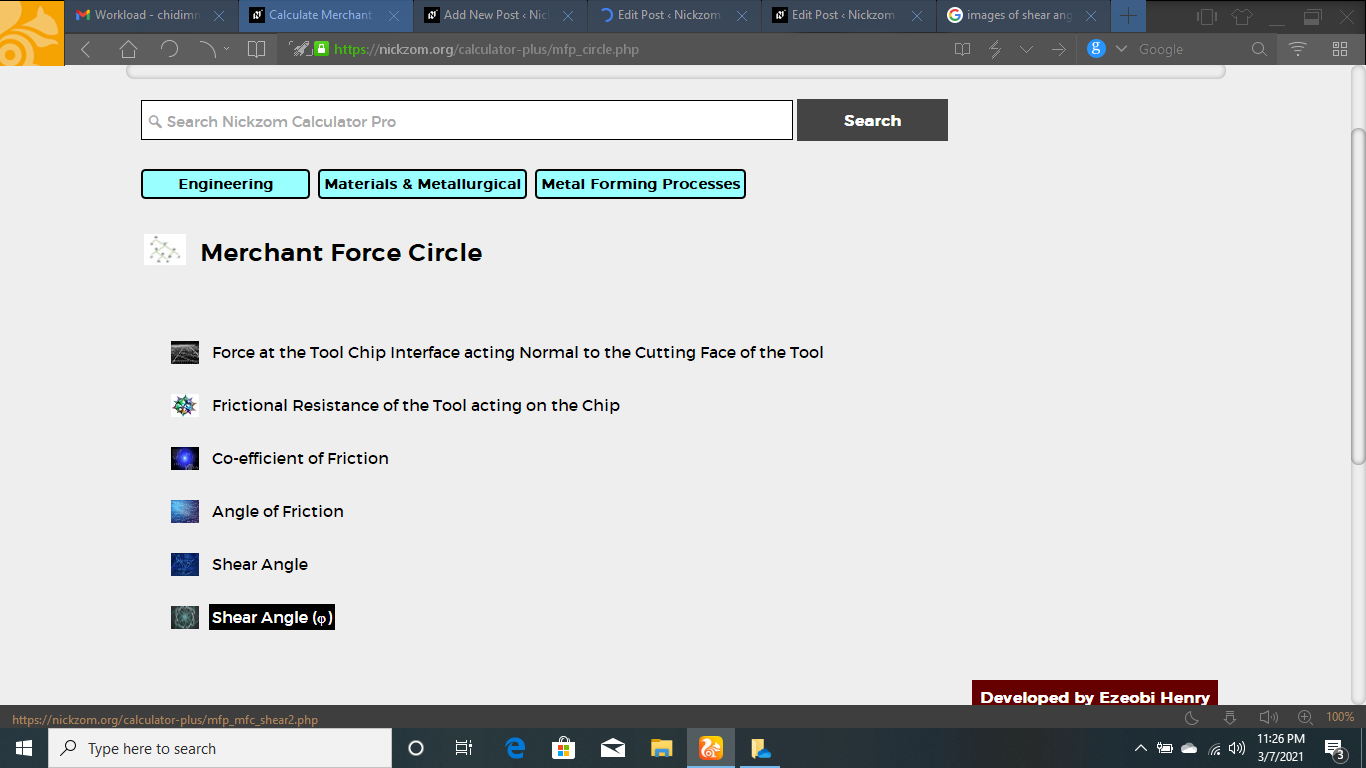

So, Click on Shear Angle under Merchant Force Circle

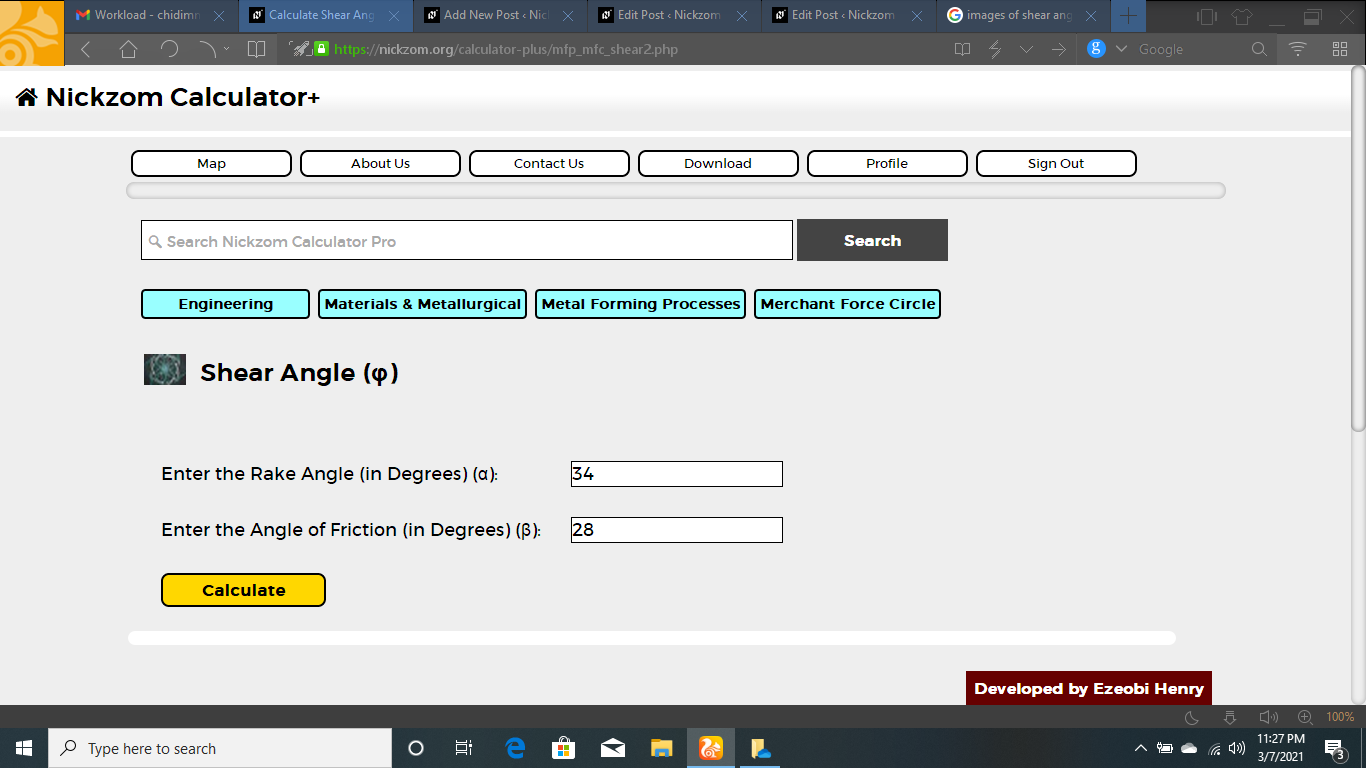

The screenshot below displays the page or activity to enter your values, to get the answer for the shear angle according to the respective parameters which is the Rake Angle (in Degrees) (α) and Angle of Friction (in Degrees) (β).

Now, enter the value appropriately and accordingly for the parameter as required by the Rake Angle (in Degrees) (α) is 34 and Angle of Friction (in Degrees) (β) is 28.

Finally, Click on Calculate

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the shear angle and presents the formula, workings and steps too.
