How to Calculate and Solve for Goodman’s Law | Material Selection

The image above represents Goodman’s law. To calculate goodman’s law, three essential parameters are needed and these parameters are Fatique Limit (Ï„e), New Fatique Limit (Ï„m) and Tensile Strength of Alloy of Spring (TS).

The formula for calculating Goodman’s law:

Ï„ = Ï„e(1 – τm/0.67TS)

Where:

Ï„ = Goodman’s Law (Ï„)
τe = Fatique Limit
Also, τm = New Fatique Limit
TS = Tensile Strength of Alloy of Spring

Let’s solve an example;
Find the goodman’s law when the fatique limit is 4, the new fatique limit is 10 and the tensile strength of alloy of spring is 12.

This implies that;

Ï„e = Fatique Limit = 4
Ï„m = New Fatique Limit = 10
and then, TS = Tensile Strength of Alloy of Spring = 12

Ï„ = Ï„e(1 – τm/0.67TS)
So, Ï„ = 4(1 – 10/0.67(12))
Ï„ = 4(1 – 10/8.040)
Ï„ = 4(1 – 1.24)
That is, Ï„ = 4(-0.24)
Ï„ = -0.975

Therefore, the goodman’s law is -0.975.

Read more: How to Calculate and Solve for Deflection of Coil of Spring | Material Selection

How to Calculate Goodman’s Law Using Nickzom Calculator

Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the goodman’s law.

To get the answer and workings of the goodman’s law using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.

You can get this app via any of these means:

Web – https://www.nickzom.org/calculator-plus

Master Every Calculation Instantly

Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.

To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator

Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

Now, Click on Material Selection under Materials and Metallurgical

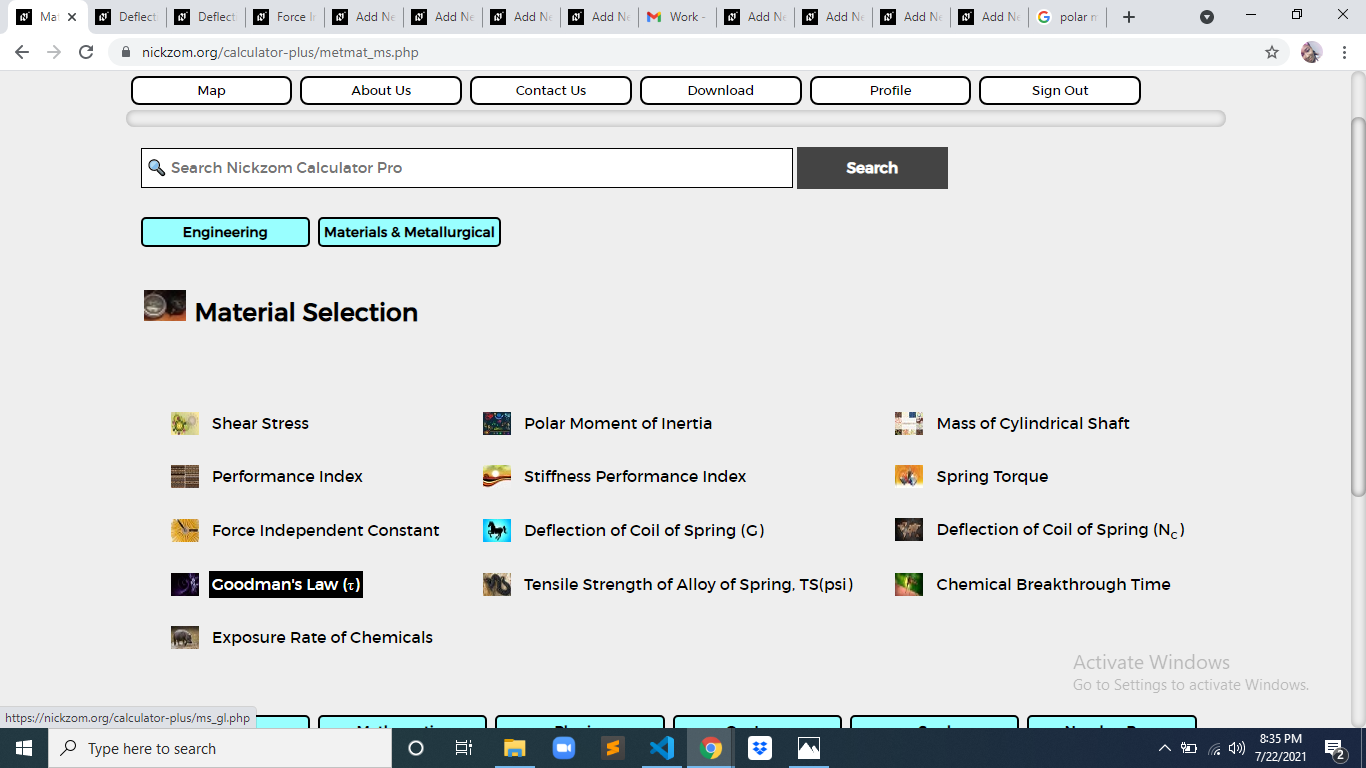

Now, Click on Goodman’s Law under Material Selection

How to Calculate and Solve for Goodman's Law | Material Selection

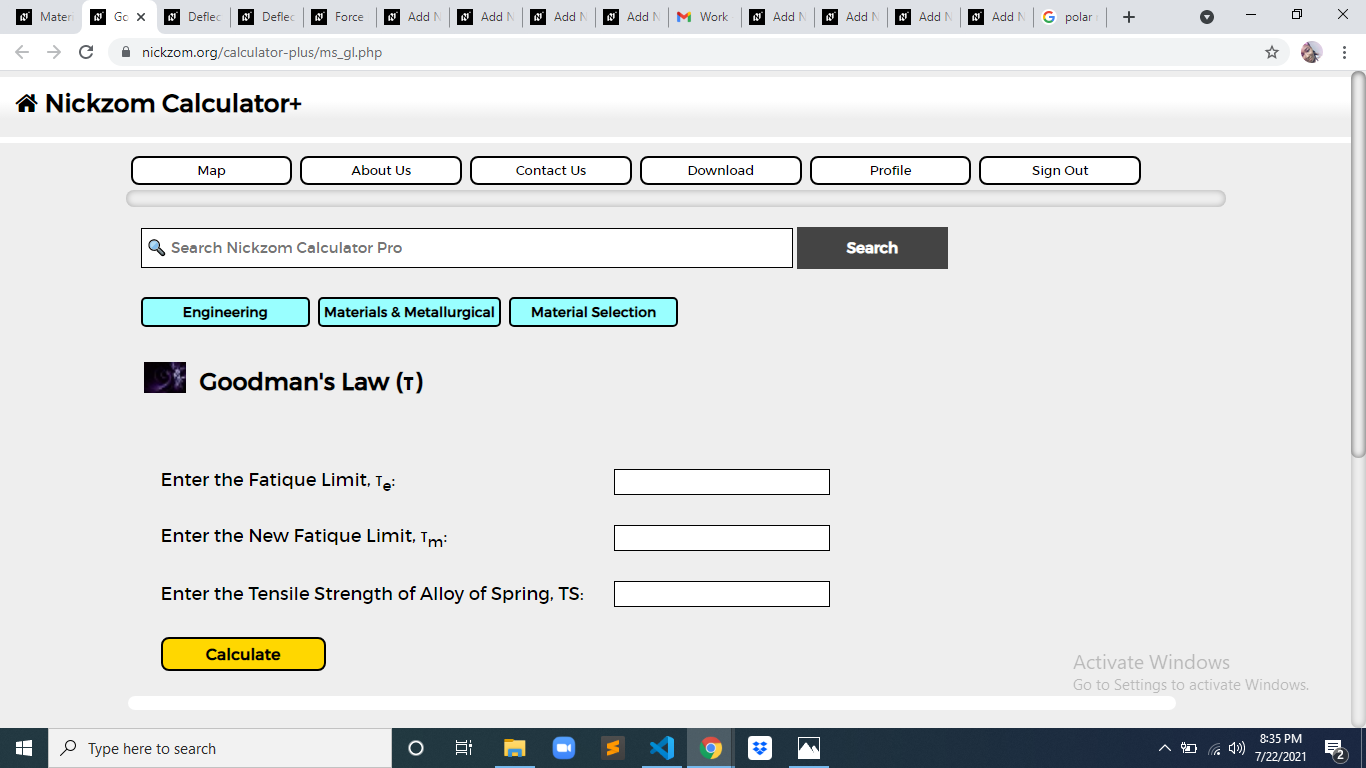

The screenshot below displays the page or activity to enter your values, to get the answer for the goodman’s law according to the respective parameters which are the Fatique Limit (Ï„e), New Fatique Limit (Ï„m) and Tensile Strength of Alloy of Spring (TS).

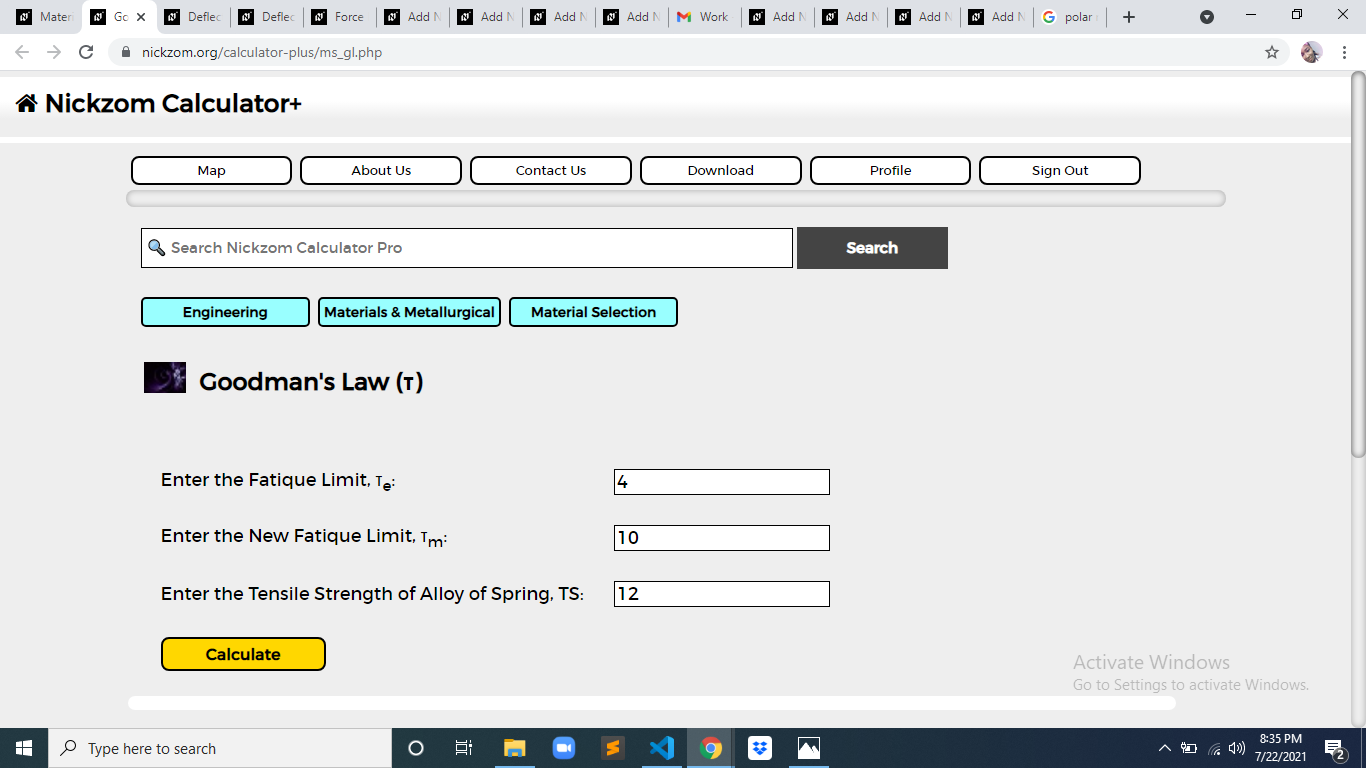

Now, enter the values appropriately and accordingly for the parameters as required by the Fatique Limit (τe) is 4, New Fatique Limit (τm) is 10 and Tensile Strength of Alloy of Spring (TS) is 12.

How to Calculate and Solve for Goodman's Law | Material Selection

Finally, Click on Calculate

How to Calculate and Solve for Goodman's Law | Material Selection

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the goodman’s law and presents the formula, workings and steps too.
