The image above represents thermal stress in relation to poisson’s ratio. To calculate thermal stress in relation to poisson’s ratio, four essential parameter are needed and these parameters are Elastic Modulus (E), Linear Coefficient of Thermal Expansion (α), Change in Temperature (ΔT) and Poisson’s Ratio (μ).
The formula for calculating thermal stress in relation to poisson’s ratio:
σ = EαΔT / 1 – μ
Where:
σ = Thermal Stress in Relation to Poisson’s Ratio
E = Elastic Modulus
α = Linear Coefficient of Thermal Expansion
ΔT = Change in Temperature
μ = Poisson’s Ratio
Let’s solve an example;
Find the thermal stress in relation to poisson’s ratio when the elastic modulus is 2, the linear coefficient of thermal expansion is 7, the change in temperature is 9 and the poisson’s ratio is 11.
This implies that;
E = Elastic Modulus = 2
α = Linear Coefficient of Thermal Expansion = 7
ΔT = Change in Temperature = 9
μ = Poisson’s Ratio = 11
σ = EαΔT / 1 – μ
Then, σ = (2)(7)(9) / 1 – 11
σ = 126 / -10
σ = -12.6
Therefore, the thermal stress in relation to poisson’s ratio is -12.6 Pa.
Calculating the Elastic Modulus when the Thermal Stress in Relation to Poisson’s Ratio, the Linear Coefficient of Thermal Expansion, the Change in Temperature and the Poisson’s Ratio are Given
E = σ(1 – μ) / αΔT
Where:
E = Elastic Modulus
σ = Thermal Stress in Relation to Poisson’s Ratio
α = Linear Coefficient of Thermal Expansion
ΔT = Change in Temperature
μ = Poisson’s Ratio
Let’s solve an example;
Find the elastic modulus when the thermal stress in relation to poisson’s ratio is 10, linear coefficient of thermal expansion is 2, the change in temperature is 3 and the poisson’s ratio is 4.
This implies that;
Master Every Calculation Instantly
Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.
σ = Thermal Stress in Relation to Poisson’s Ratio = 10
α = Linear Coefficient of Thermal Expansion = 2
ΔT = Change in Temperature = 3
μ = Poisson’s Ratio = 3
E = σ(1 – μ) / αΔT
E = 10(1 – 3) / (2)(3)
So, E = 10(-2) / 6
E = -20 / 6
E = -3.33
Therefore, the elastic modulus is -3.33.
Read more:Â How to Calculate and Solve for Thermal Stress with Quenching | Polymer Deformation
Calculating the Linear Coefficient of Thermal Expansion when the Thermal Stress in Relation to Poisson’s Ratio, the Elastic Modulus, the Change in Temperature and the Poisson’s Ratio are Given
α = σ(1 – μ) / EΔT
Where:
α = Linear Coefficient of Thermal Expansion
σ = Thermal Stress in Relation to Poisson’s Ratio
E = Elastic Modulus
ΔT = Change in Temperature
μ = Poisson’s Ratio
Let’s solve an example;
Find the linear coefficient of thermal expansion when the thermal stress in relation to poisson’s ratio is 2, the elastic modulus is 1, the change in temperature is 3 and the poisson’s ratio is 5.
This implies that;
σ = Thermal Stress in Relation to Poisson’s Ratio = 2
E = Elastic Modulus = 1
ΔT = Change in Temperature = 3
μ = Poisson’s Ratio = 5
α = σ(1 – μ) / EΔT
That si, α = 2(1 – 5) / 1(3)
α = -8 / 3
α = -2.67
Therefore, the linear coefficient of thermal expansion is -2.67.
Calculating the Change in Temperature when the Thermal Stress in Relation to Poisson’s Ratio, the Elastic Modulus, the Linear Coefficient of Thermal Expansion and the Poisson’s Ratio are Given
ΔT = σ(1 – μ) / Eα
Where:
ΔT = Change in Temperature
σ = Thermal Stress in Relation to Poisson’s Ratio
E = Elastic Modulus
α = Linear Coefficient of Thermal Expansion
μ = Poisson’s Ratio
Let’s solve an example;
Find the change in temperature when the thermal stress in relation to poisson’s ratio is 8, the elastic modulus is 4, the linear coefficient of thermal expansion is 2 and poisson’s ratio is 7.
This implies that;
σ = Thermal Stress in Relation to Poisson’s Ratio = 8
E = Elastic Modulus = 4
α = Linear Coefficient of Thermal Expansion = 2
μ = Poisson’s Ratio = 7
ΔT = σ(1 – μ) / Eα
ΔT = 8(1 – 7) / 4(2)
So, ΔT = 8(-6) / 8
ΔT = -48 / 8
ΔT = -6
Therefore, the change in temperature is -6.
Read more:Â How to Calculate and Solve for Damping Stress | Polymer Deformation
Calculating the Poisson’s Ratio when the Thermal Stress in Relation to Poisson’s Ratio, the Elastic Modulus, the Linear Coefficient of Thermal Expansion and the Change in Temperature are Given
μ = 1 – (EαΔT / σ)
Where:
μ = Poisson’s Ratio
σ = Thermal Stress in Relation to Poisson’s Ratio
E = Elastic Modulus
α = Linear Coefficient of Thermal Expansion
ΔT = Change in Temperature
Let’s solve an example;
Find the poisson’s ratio when the thermal stress in relation to poisson’s ratio is 45, the elastic modulus is 5, the linear coefficient of thermal expansion is 2 and the change in temperature is 3.
σ = Thermal Stress in Relation to Poisson’s Ratio = 45
E = Elastic Modulus = 5
α = Linear Coefficient of Thermal Expansion = 2
ΔT = Change in Temperature = 3
μ = 1 – (EαΔT / σ)
μ = 1 – (5(2)(3) / 45)
So, μ = 1 – (30 / 45)
μ = 1 – 0.66
μ = 0.34
Therefore, the poisson’s ratio is 0.34.
How to Calculate Thermal Stress in Relation to Poisson’s Ratio Using Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the thermal stress in relation to poisson’s ratio.
To get the answer and workings of the thermal stress in relation to poisson’s ratio using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
To get access to the professional version via web, you need to register and subscribe to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

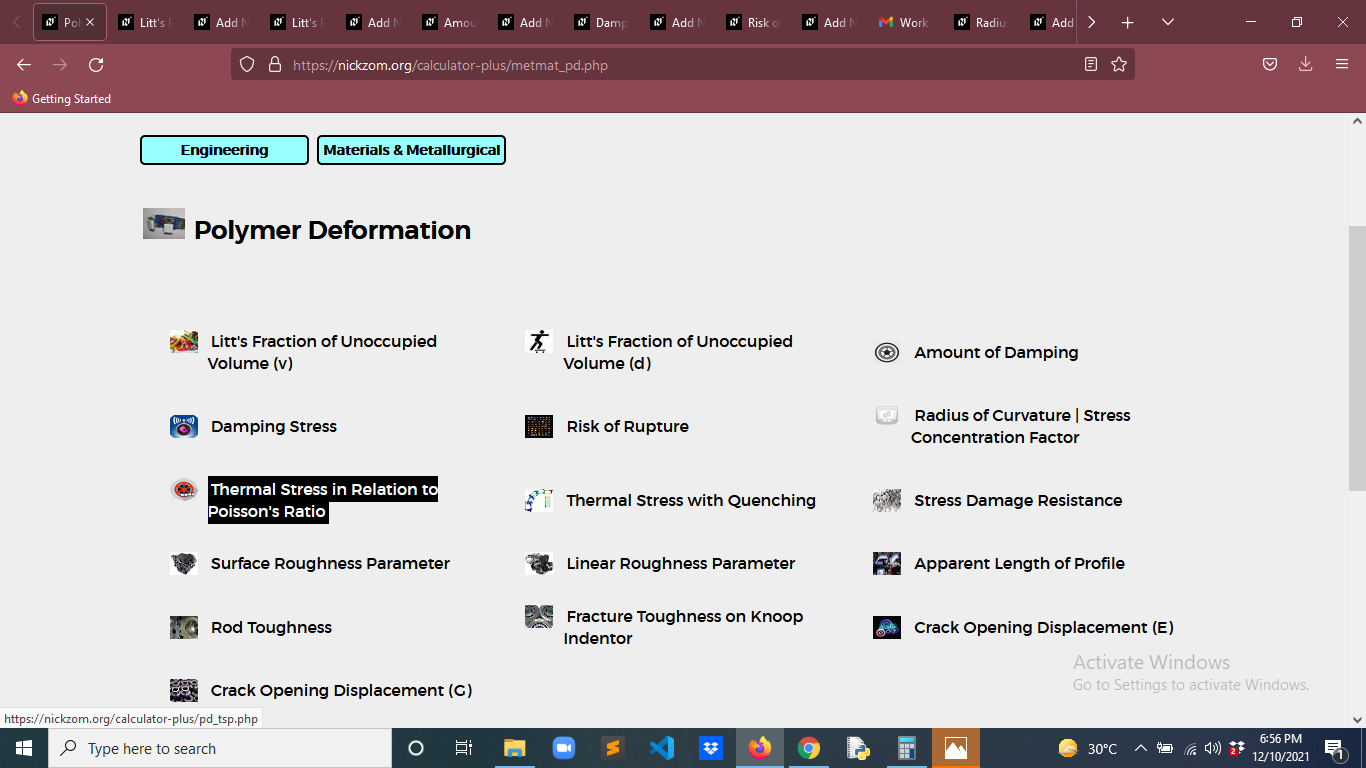

Now, Click on Polymer Deformation under Materials and Metallurgical
Now, Click on Thermal Stress in Relation to Poisson’s Ratio under Polymer Deformation

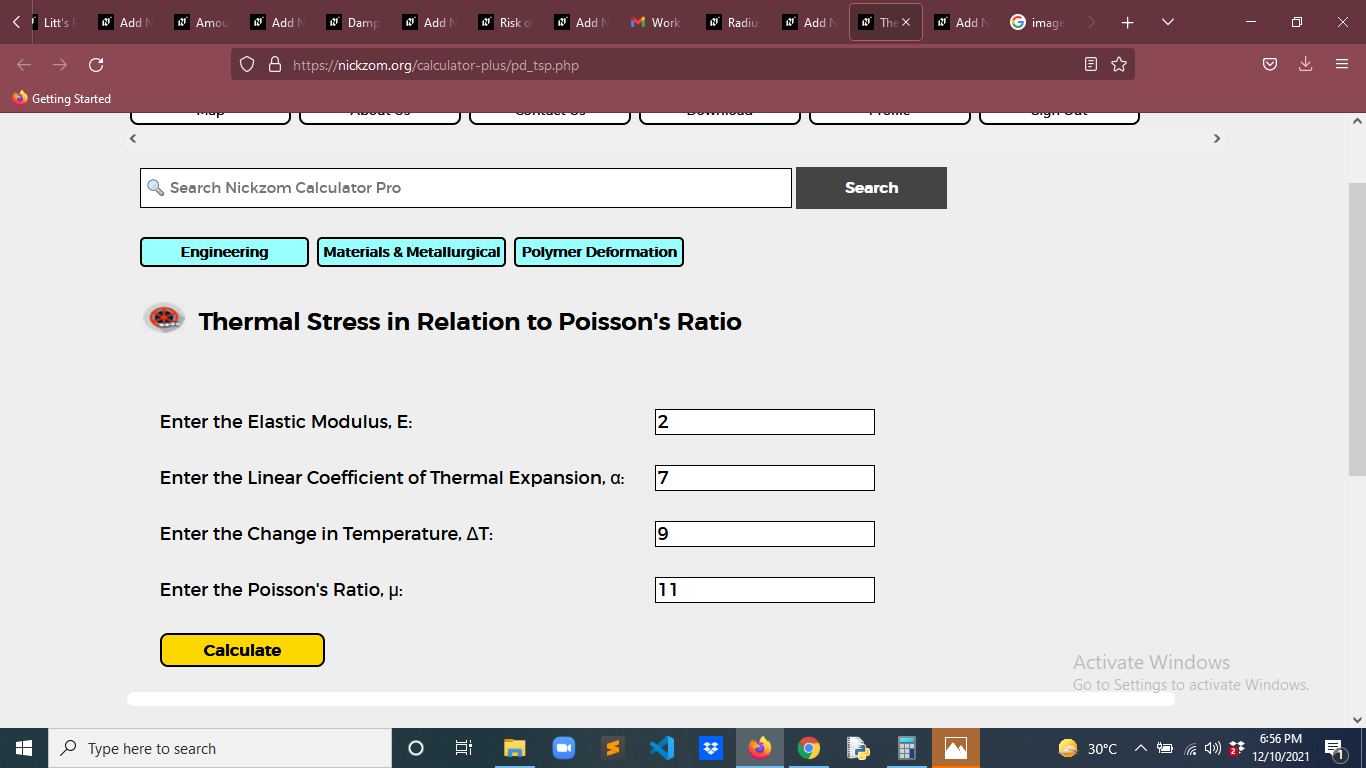

The screenshot below displays the page or activity to enter your values, to get the answer for the thermal stress in relation to poisson’s ratio according to the respective parameter which is the Elastic Modulus (E), Linear Coefficient of Thermal Expansion (α), Change in Temperature (ΔT) and Poisson’s Ratio (μ).
Now, enter the values appropriately and accordingly for the parameters as required by the Elastic Modulus (E) is 2, Linear Coefficient of Thermal Expansion (α) is 7, Change in Temperature (ΔT) is 9 and Poisson’s Ratio (μ) is 11.
Finally, Click on Calculate

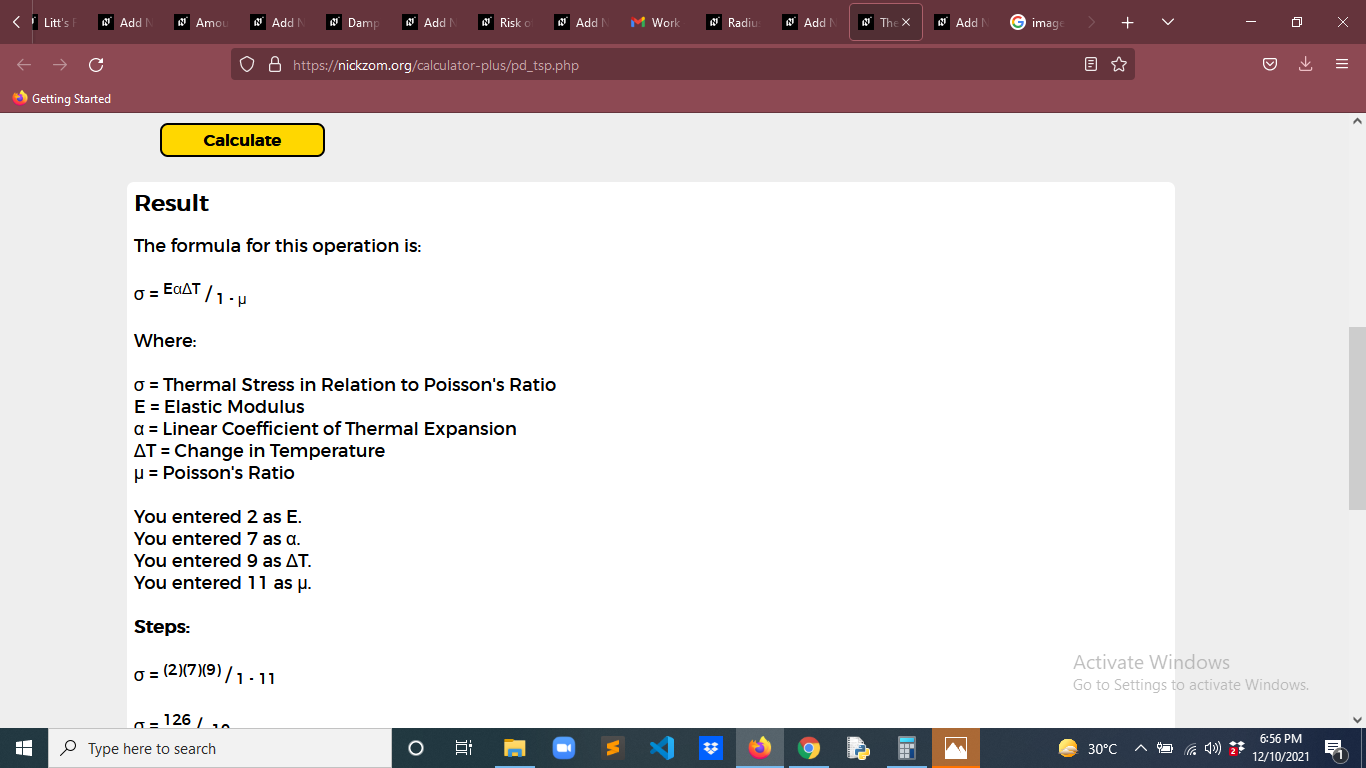

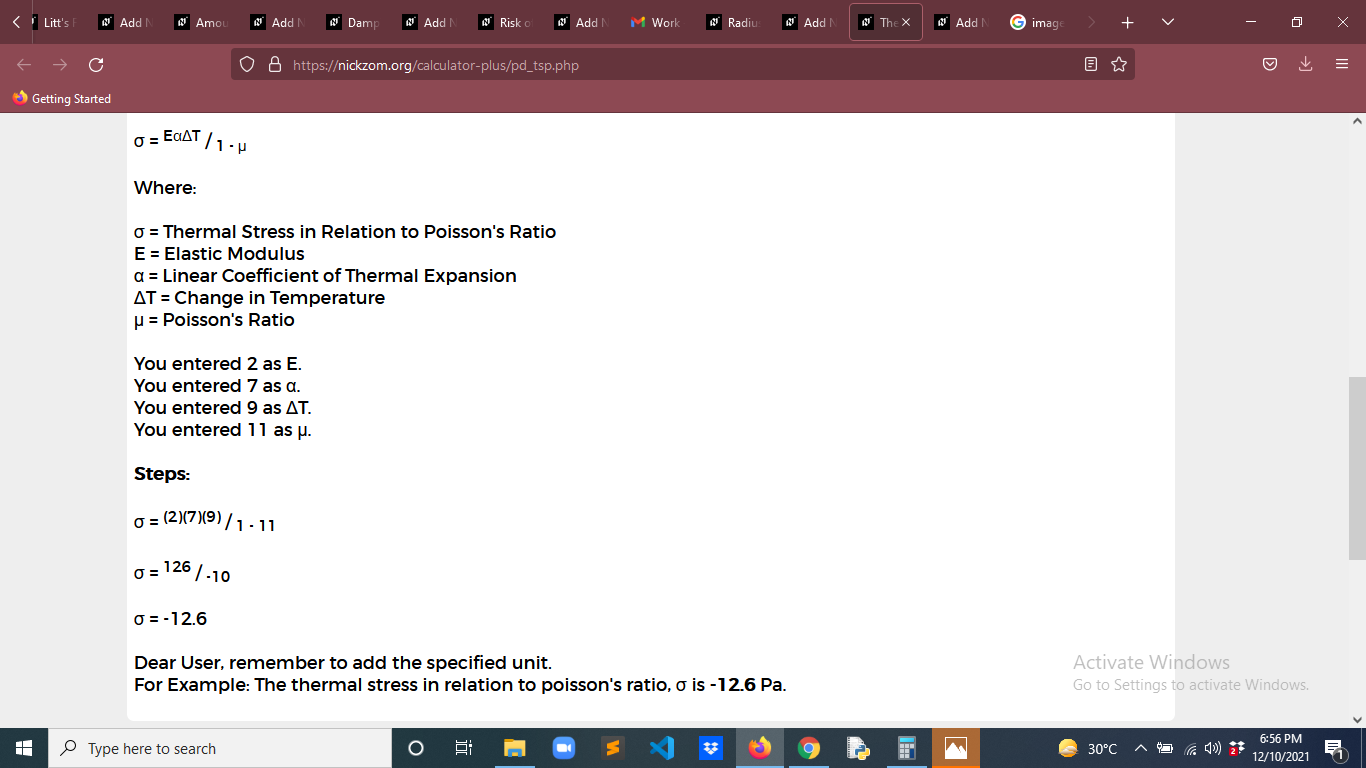

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia can calculate the thermal stress in relation to poisson’s ratio and presents the formula, workings and steps too.
