The angular anisotropy is illustrated by the image below. To compute for angular anisotropy, three essential parameters are needed and these parameters are Normal Anisotropy at Angle 0° (Ro), Normal Anisotropy at Angle 45° (R45) and Normal Anisotropy at Angle 90° (R90).
The formula for calculating the angular anisotropy:
R =Â (R0Â + 2R45Â + R90)Â /Â 4
Where:
R = Angular Anisotropy
R0 = Normal Anisotropy at Angle 0°
And then, R45 = Normal Anisotropy at Angle 45°
R90 = Normal Anisotropy at Angle 90°
Let’s solve an example;
Find the angular anisotropy when the normal anisotropy at angle 0° is 4. the normal anisotropy at angle 45° is 6 and the normal anisotropy at angle 90° is 3.
This implies that;
R0 = Normal Anisotropy at Angle 0° = 4
R45 = Normal Anisotropy at Angle 45° = 6
And then, R90 = Normal Anisotropy at Angle 90° = 3
R =Â (R0Â + 2R45Â + R90)Â /Â 4
R =Â (4 + 2(6) + 3)Â /Â 4
So, R = (4 + 12 + 3)Â /Â 4
R =Â 19Â /Â 4
R = 4.75
Therefore, the angular anisotropy is 4.75.
Read more:Â How to Calculate and Solve for Plain Normal Anisotropy | Anisotropy
How to Calculate Angular Anisotropy With Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the angular anisotropy.
To get the answer and workings of the angular anisotropy using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
Master Every Calculation Instantly
Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.
To get access to the professional version via web, you need to register and subscribe to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

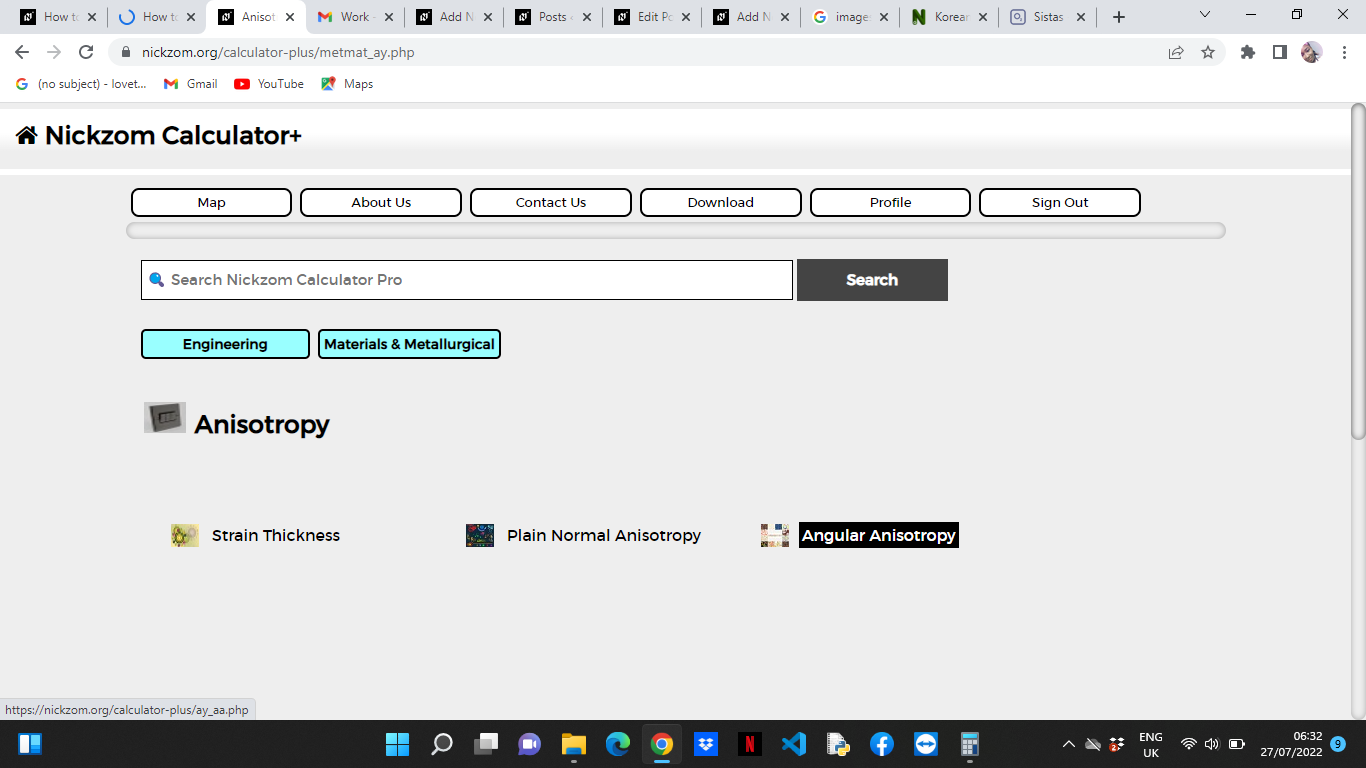

Now, Click on Anisotropy under Materials and Metallurgical
Now, Click on Angular Anisotropy under Anisotropy

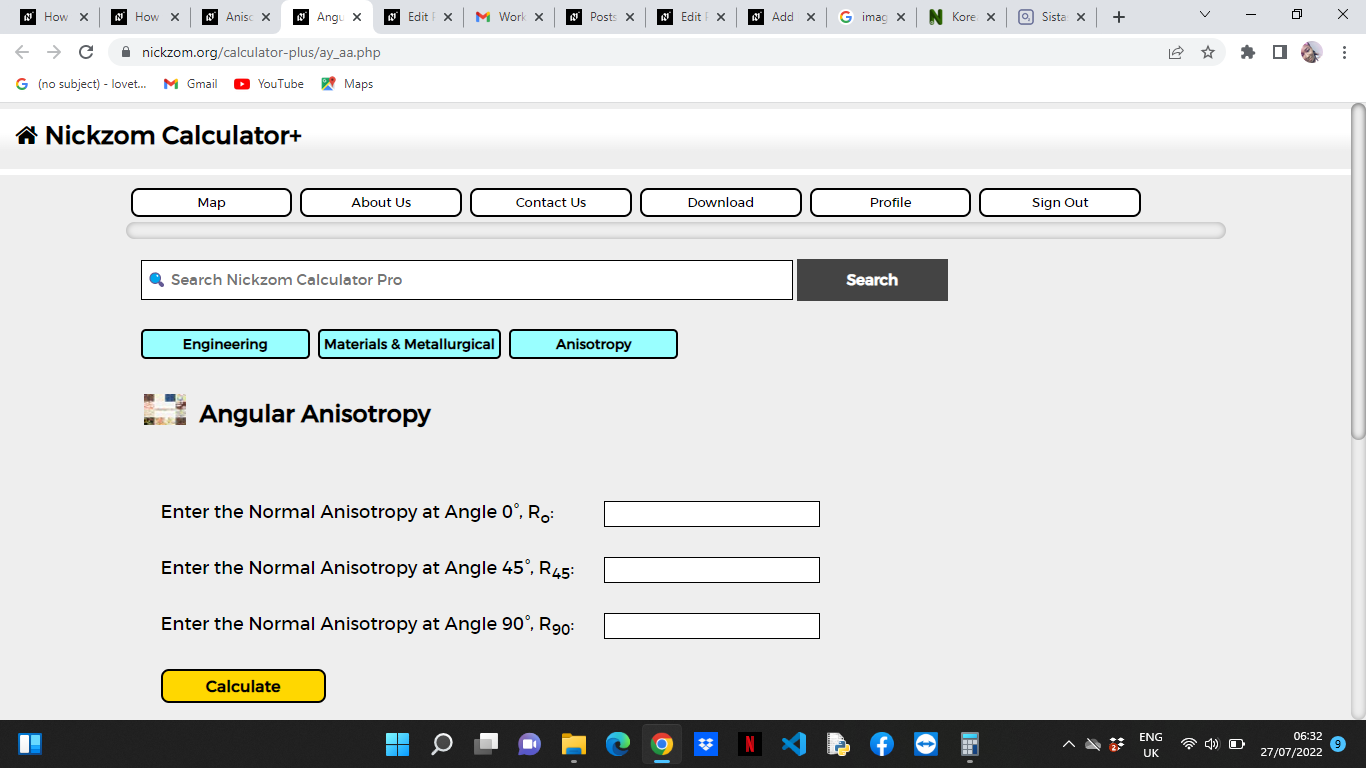

The screenshot below displays the page or activity to enter your values, to get the answer for the angular anisotropy according to the respective parameter which is the Normal Anisotropy at Angle 0° (Ro), Normal Anisotropy at Angle 45° (R45) and Normal Anisotropy at Angle 90° (R90).

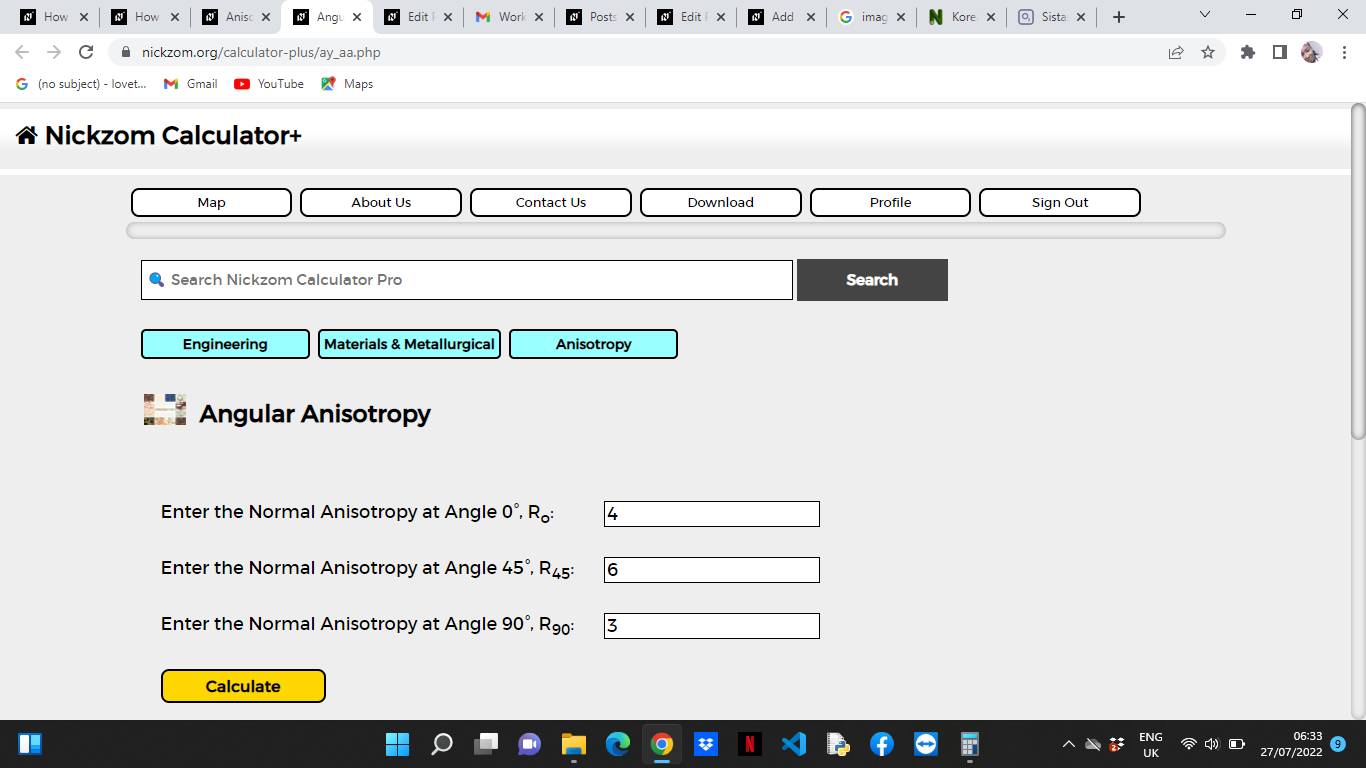

Now, enter the values appropriately and accordingly for the parameters as required by the Normal Anisotropy at Angle 0° (Ro) is 4, Normal Anisotropy at Angle 45° (R45) is 6 and Normal Anisotropy at Angle 90° (R90) is 3.
Finally, Click on Calculate

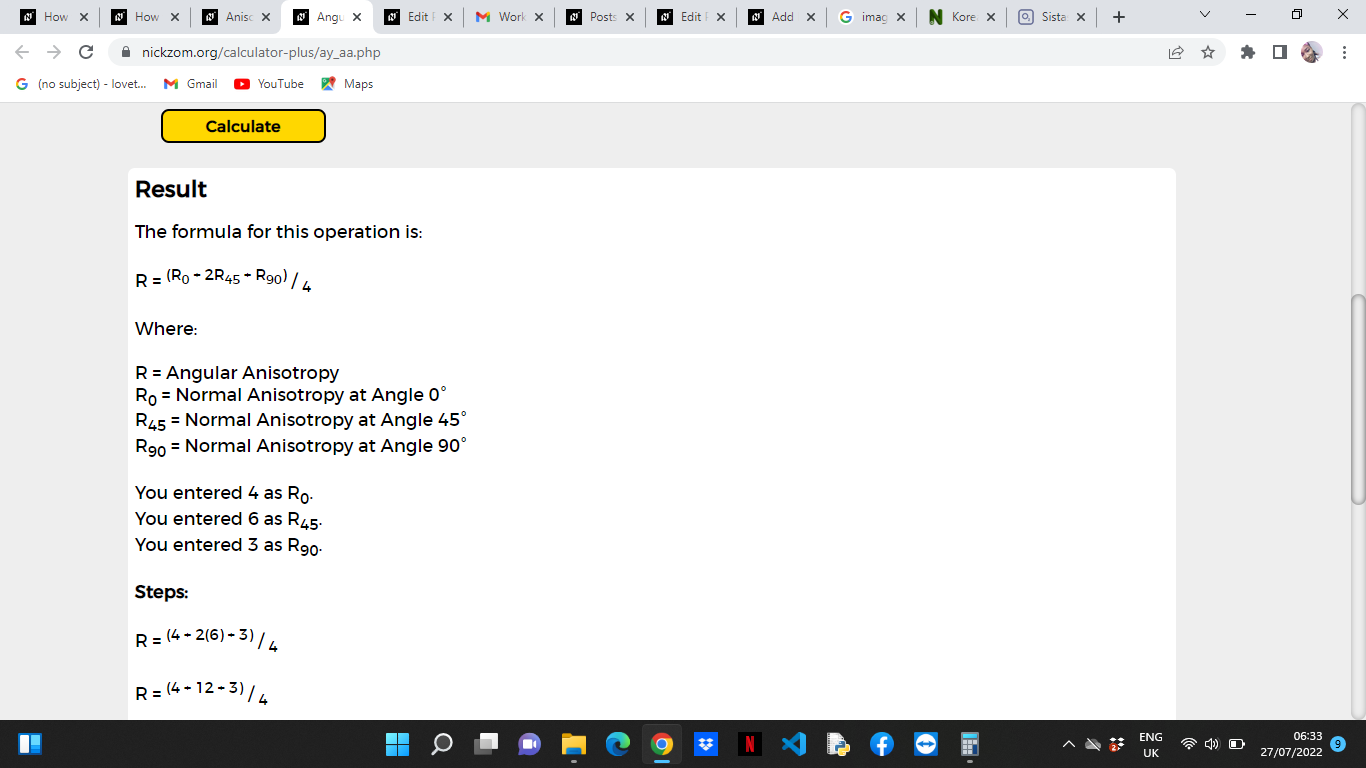

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the angular anisotropy and presents the formula, workings and steps too.
