The image above represents percentage elongation, ductility. To calculate percentage elongation, ductility, two essential parameters are needed and these parameters are the Final Length at Breakage (l1) and Initial Length before Breakage (l0).
The formula for calculating percentage elongation, ductility:
%El = 100((l1Â – l0)/l0)
Where:
%El = Percentage Elongation, ductility
l1Â = Final Length at Breakage
l0Â = Initial Length before Breakage
Given an example;
Find the percentage elongation, ductility when the final length at breakage is 24 and the initial length before breakage is 12.
This implies that;
l1 = Final Length at Breakage = 24
l0 = Initial Length before Breakage = 12
%El = 100((l1Â – l0)/l0)
%El = 100((24 – 12)/12)
So, %El = 100(12/12)
%El = 100(1)
%El = 100
Therefore, the percentage elongation, ductility is 100%.
Read more:Â How to Calculate and Solve for Elongation Potential of Twin Deformation | Fracture Mechanics
How to Calculate Percentage Elongation, Ductility With Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the percentage elongation, ductility.
To get the answer and workings of the percentage elongation, ductility using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
Master Every Calculation Instantly
Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.
To get access to the professional version via web, you need to register and subscribe to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

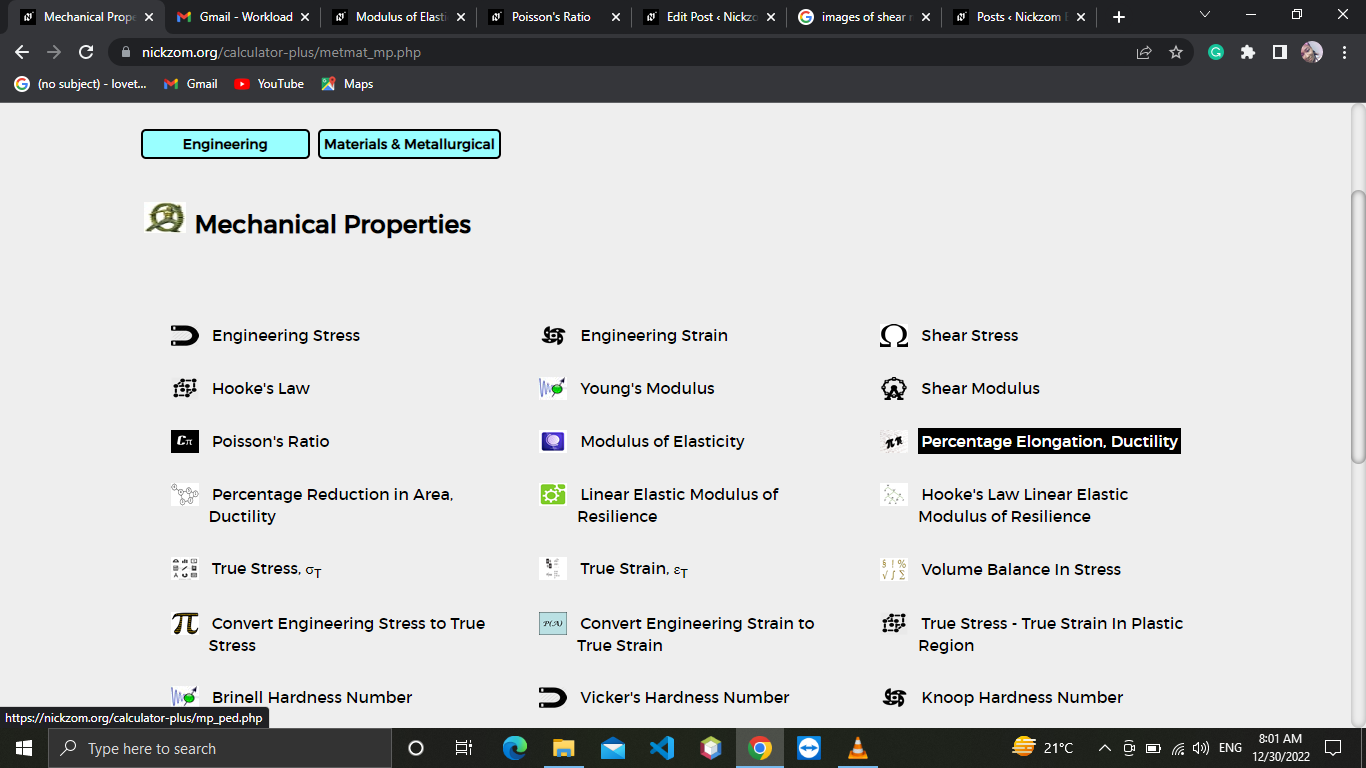

Now, Click on Mechanical Properties under Materials and Metallurgical
Now, Click on Percentage elongation, Ductility under Mechanical Properties

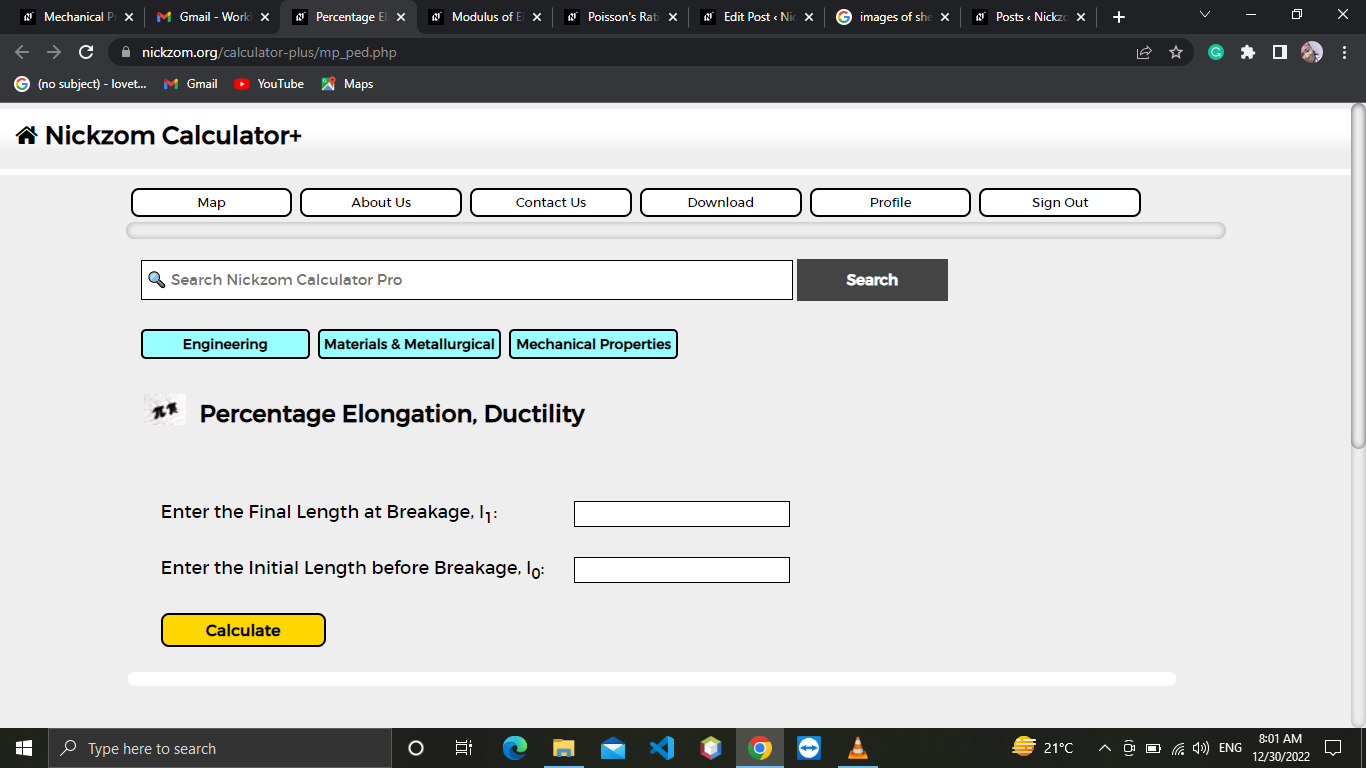

The screenshot below displays the page or activity to enter your values, to get the answer for the percentage elongation, ductility according to the respective parameter which is the Final Length at Breakage (l1) and Initial Length before Breakage (l0).
Now, enter the values appropriately and accordingly for the parameters as required by the Final Length at Breakage (l1) is 24Â and Initial Length before Breakage (l0) is 12.
Finally, Click on Calculate
As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the percentage elongation, ductility and presents the formula, workings and steps too.
